PYRO-SAFE DG-CR BS
Fire protection fabric used as pipe wrap.
Fields of application
Fire Protection fabric used as pipe wrap for combustible pipes.
Applicability certificate
Approved by Deutsches Institut für Bautechnik, Berlin (DIBt).
• ETA 16/0268
Other standards on request.
Product features

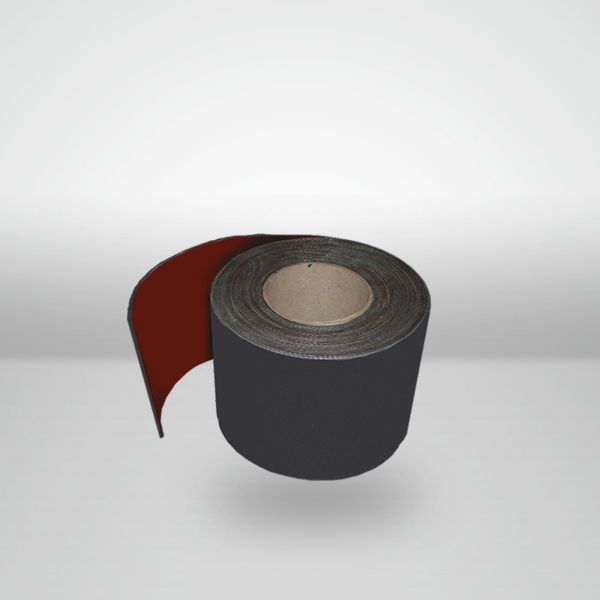

PYRO-SAFE DG-CR BS is a flexible fabric composite fibre glass reinforcement with intumescent coating PYRO-SAFE DG on both sides.
When exposed to heat or fire it forms a microporous, heat insulating foam on the inside, which fills the space between the building component and the fabric, thus limiting the spread of fire.
Handling
• Processing temperature + 5°C – max. +50 °C; < + 5°C Loss of flexibility; < 85% relative air humidity.
• (Pre-)cut with ordinary cutting tools, e.g. scissors or utility knives.
Ordering information
Length: 10 m rolls
Width: 100 mm
Colour: anthracite / red
Nominal thickness: 1,5 mm
One roll carton-packed
Storage
Dry indoor.
Protect the product against compression load.
Safety instructions
Please refer to our MSDS (safety data sheet).
